Description

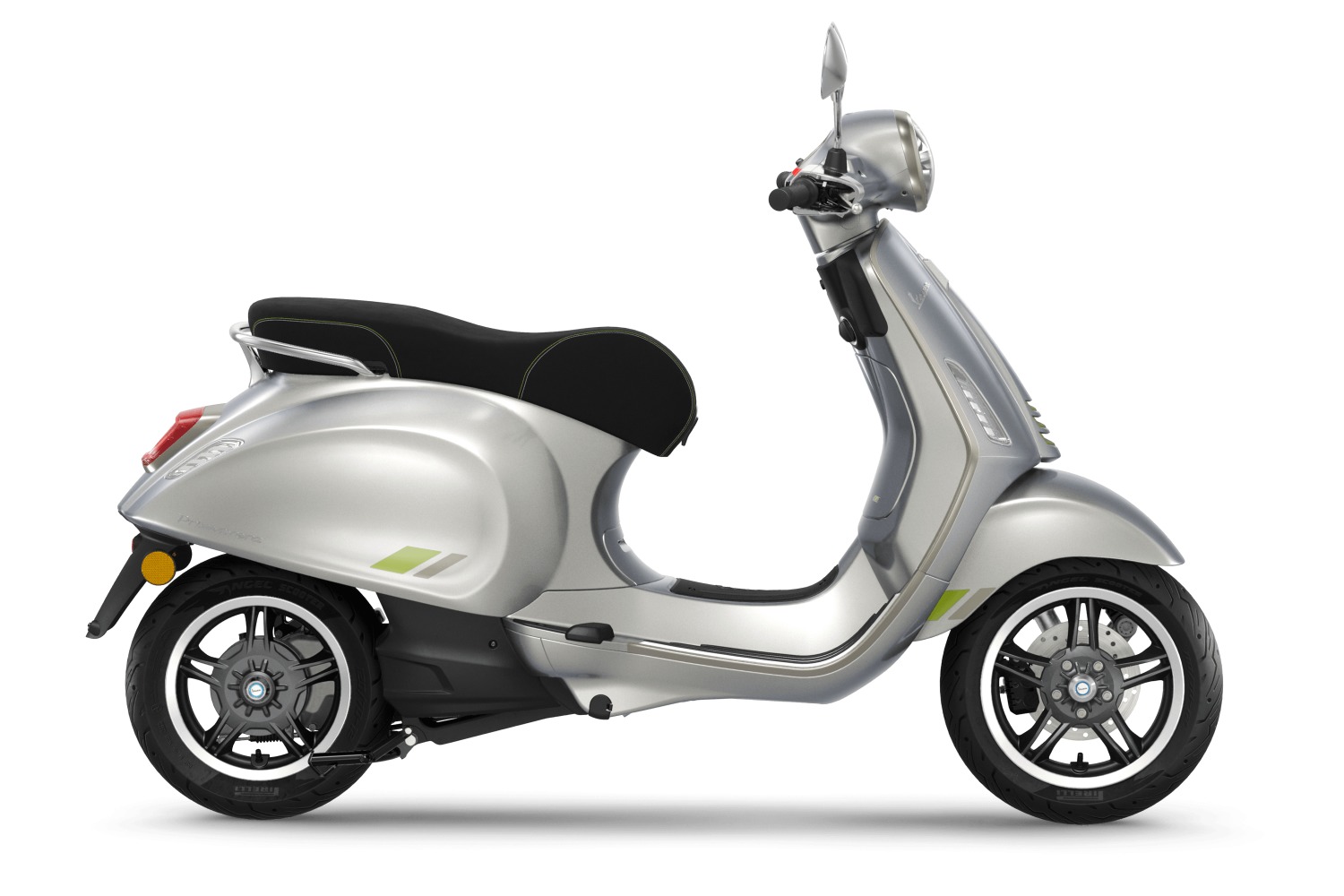

(VESPA PRIMAVERA) TECh Elettrica 70 – TECHNICAL SPECIFICATIONS
CONTINUOUS POWER 3.6 kW
MAXIMUM POWER 4 kW
MAX TORQUE 200 Nm (peak)
BATTERY
VOLTAGE
48 V
BATTERY CAPACITY 86 Ah
BATTERY ENERGY 4.2 kWh
CELL LG Chem
RECHARGE TIME 4 h** (minimum recharge time with 220 V)
BATTERY LIFE 1,000 cycles (residual capacity 80%)
MAXIMUM SPEED –
BATTERY WEIGHT 25 kg
ENERGY RECOVERY Yes
LOAD-BEARING
STRUCTURE
Sheet steel body with welded reinforcements
FRONT TYRE Tubeless 110/70 – 12”
REAR TYRE Tubeless 120/70 – 11”
FRONT BRAKE Ø 200 mm stainless steel disc with hydraulic control
REAR BRAKE Ø 140 mm drum mechanically operated
BRAKING SYSTEM Single channel ABS
WHEELBASE –
LENGTH –
WIDTH 735 mm
SADDLE HEIGHT 785 mm
WEIGHT (WITH BATTERY) 130 kg
AUTONOMY (WMCT)* 80 km
